SKF 3211 A-2Z/C3MT33
Angular contact ball bearings

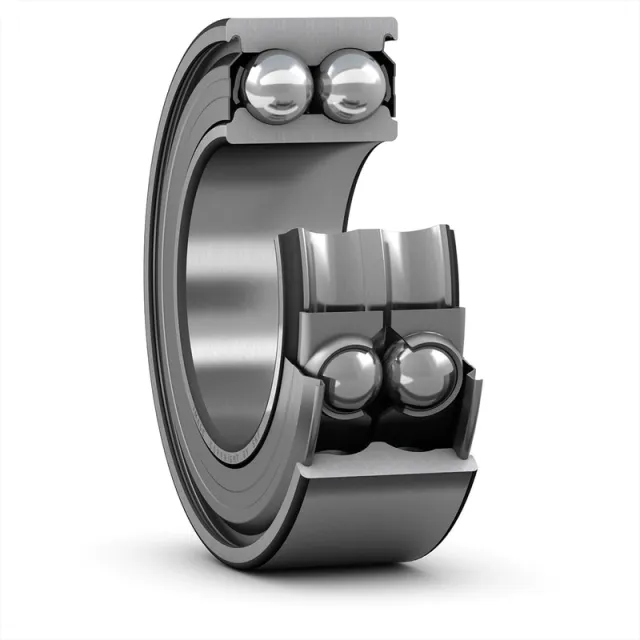

SKF 3211 A-2Z/C3MT33 Double row angular contact ball bearing with seals or shields

Title:
3211 A-2Z/C3MT33
Code:
0000000044810
Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.
Currently out of stock.
Price with VAT: 145,97 €
Price excluding VAT: 119,65 €

Dimensions

Bore diameter
55 mm
Outside diameter
100 mm
Width
33.3 mm

Performance

Basic dynamic load rating
61 kN
Basic static load rating
52 kN
Limiting speed
6300 r/min
Reference speed
6300 r/min
Contact angle
30.000000000074 °

Properties

Sealing
Shield on both sides
Cage
Sheet metal
Locating feature, bearing outer ring
None
Lubricant
None
Relubrication feature
Without
Matched arrangement
No
Material, bearing
Bearing steel
Universal matching bearing
No

Logistics

Pack gross weight
960.1 g
Pack height
106 mm
Pack length
104 mm
Pack width
40 mm
Pack volume
440.96 cm³
Product net weight
0.942 kg
UNSPSC name
Angular contact bearing
eClass name
Angular contact ball bearing
