SKF PER.BB203RYY2-B
Angular contact ball bearings

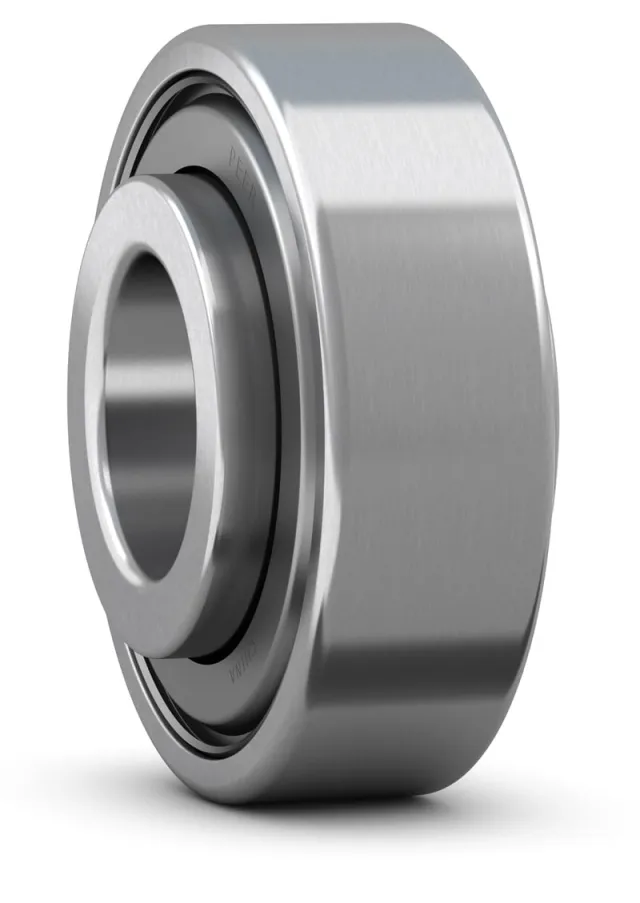

SKF PER.BB203RYY2-B Special four-point contact ball bearing with integral sealing

Title:
PER.BB203RYY2-B
Code:
0000000122203
These special four-point contact ball bearings with integral sealing are designed mainly for agricultural applications, such as seeders. They have a cylindrical outside surface and a round bore. They accommodate high axial loads in both directions and small radial loads. They are easy to mount and the integral sealing can significantly prolong bearing service life and reduce maintenance efforts.
Currently out of stock.
Price with VAT: 9,51 €
Price excluding VAT: 7,80 €

Dimensions

Bore diameter
16.256 mm
Outside diameter
40 mm
Width
18.288 mm

Performance

Basic dynamic load rating
14.4 kN
Basic static load rating
8.9 kN

Properties

Sealing
Seal on both sides
Lubricant
Grease

Logistics

Pack gross weight
0.089 kg
Pack height
19 mm
Pack length
64 mm
Pack width
64 mm
Pack volume
77.824 cm³
Product net weight
0.084 kg
UNSPSC name
Insert bearing
eClass name
Mounted bearing unit (unclassified)
