SKF NKIB 5902
Angular contact ball bearings

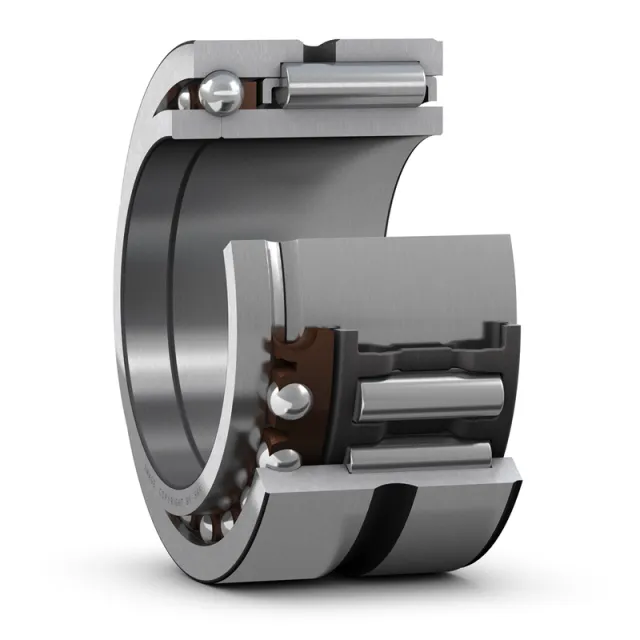

SKF NKIB 5902 Combined needle roller / angular contact ball bearing for axial loads in both directions

Title:
NKIB 5902
Code:
0000000062754
These bearings consist of a radial needle roller bearing combined with an angular contact ball bearing. Together they can accommodate both heavy radial loads and light axial loads in both directions. In addition, they can operate at high speeds. Their low cross-sectional height makes the bearings particularly suitable for applications where other types of locating bearing arrangements occupy too much space.
Currently out of stock.
Price with VAT: 44,32 €
Price excluding VAT: 36,33 €

Dimensions

Bore diameter
15 mm
Outside diameter
28 mm
Width
20 mm

Performance

Limiting speed
22000 r/min
Reference speed
19000 r/min

Properties

Radial internal clearance
CN
Bearing part
Complete bearing
Axial load capability
Double-direction
Material, bearing
Bearing steel
Tolerance class
Other
Rolling bearing type
Needle roller / angular contact ball bearing

Logistics

Pack gross weight
57.5 g
Pack height
47 mm
Pack length
47 mm
Pack width
33 mm
Pack volume
72.897 cm³
Product net weight
0.052 kg
UNSPSC name
Needle bearings
eClass name
Needle roller bearing
