SKF THAP 400E
Hydraulic pumps and oil injectors

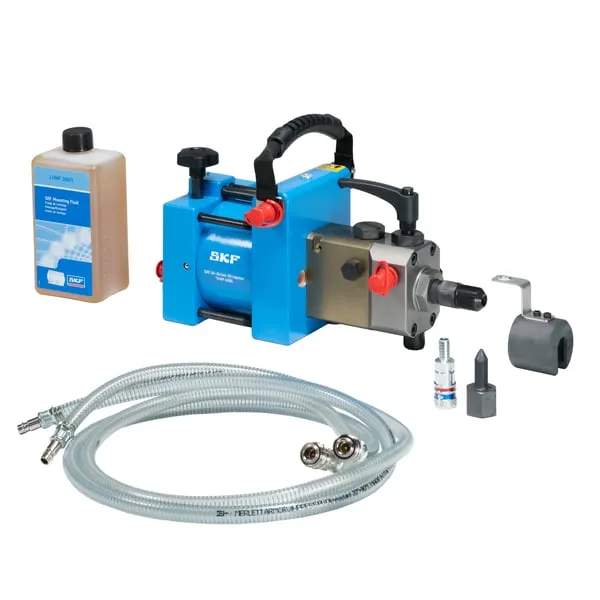

SKF THAP 400E SKF Air-driven oil injector (400 MPa)

Title:
THAP 400E
Code:
0000000130103
The THAP 400E air-driven oil injector can be used for mounting and dismounting SKF OK Couplings, large pressure joints such as bearings, flywheels, couplings and railway wheels. It is also suitable for simlar applications for pressures upto 400 MPa/58,000 psi. The unit consists of a hydraulic pump driven by an air motor. The item is supplied in a sturdy case including oil suction and return hoses with quick connect couplings. SKF Mounting and Dismouting fluids are recommended for use with the THAP 400E.
Currently out of stock.
Price with VAT: 9.124,89 €
Price excluding VAT: 7.479,42 €

Performance

Air consumption
200 l/min
Air pressure limiter
7 bar
Volume per stroke
0.64 ml

Properties

Recommended applications
OK Couplings;Large pressure joints;Oil injection for large gears and railway wheels
Colour
Blue;Metallic grey
Operating temperature range
0 – 45 °C

Logistics

Pack gross weight
20.945 kg
Pack height
310 mm
Pack length
690 mm
Pack width
245 mm
Pack volume
52.406 dm³
Product net weight
20.945 kg
UNSPSC name
Oil gun
eClass name
Product for mounting and dismounting and for maintenance
