Insert bearings

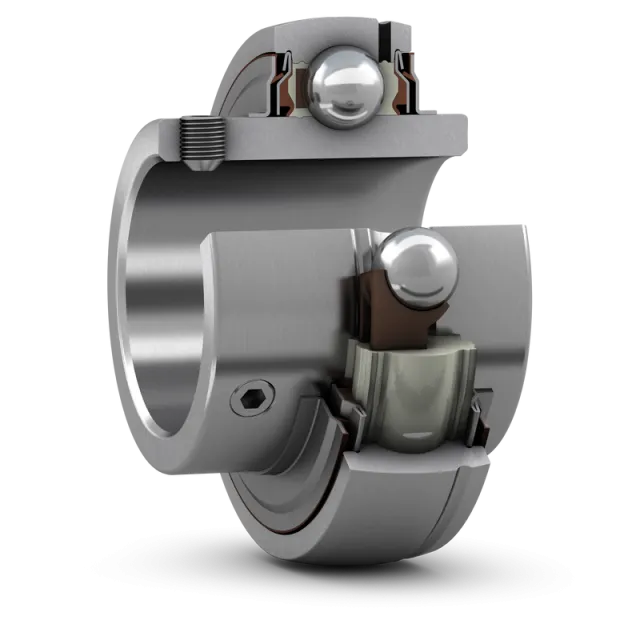

SKF YAR 206-2RF/HVW64F Insert bearing with set screw locking and extended inner ring

Name: SKF YAR 206-2RF/HVW64F - Insert bearing with set screw locking and extended inner ring
Brand: SKF
SKU: 0000000127982
Price: 203.09 EUR
Availability: BackOrder

Title:

YAR 206-2RF/HVW64F

Code:

0000000127982

Insert bearings are based on sealed deep groove ball bearings. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening two (set) screws on the inner ring, making it easy to mount.

Currently out of stock.

Price with VAT: 203,09 €

Price excluding VAT: 166,47 €

Dimensions

Bore diameter

30 mm

Outside diameter

62 mm

Width, inner ring

38.1 mm

Width, outer ring

18 mm

Width, total

38.1 mm

Performance

Basic dynamic load rating

16.3 kN

Basic static load rating

11.2 kN

Limiting speed

700 r/min

Properties

Sealing

Seal and flinger on both sides

Bore type

Cylindrical

Cage

Non-metallic

Lubricant

Solid Oil

Relubrication feature

With

Material, bearing

Stainless steel

Application

For food and beverage applications

Logistics

Pack gross weight

0.323 kg

Pack height

67 mm

Pack length

65 mm

Pack width

44 mm

Pack volume

191.62 cm³

Product net weight

0.31 kg

UNSPSC name

Insert bearing

eClass name

Bearing with spherical outside surface
