Insert bearings

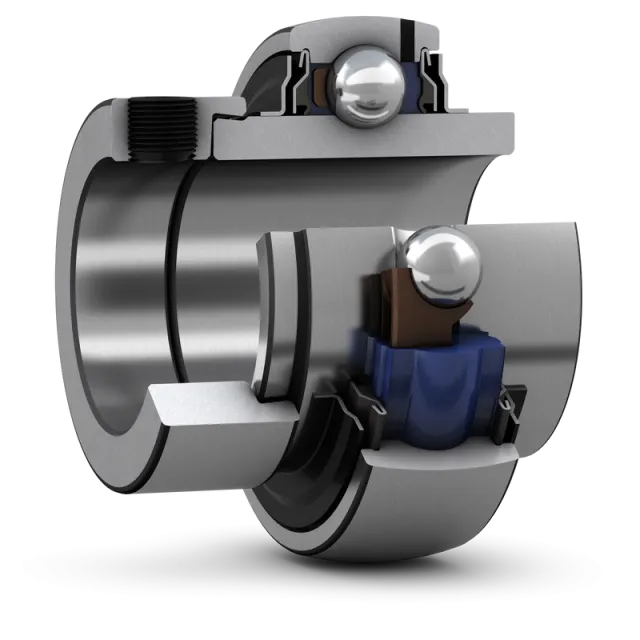

SKF YEL 210-2F/W64 Insert bearing with an eccentric locking collar and extended inner ring

Name: SKF YEL 210-2F/W64 - Insert bearing with an eccentric locking collar and extended inner ring
Brand: SKF
SKU: 0000000070765
Price: 274.39 EUR
Availability: BackOrder

Title:

YEL 210-2F/W64

Code:

0000000070765

Insert bearings are based on sealed deep groove ball bearings. This variant is intended for use in applications where the direction of rotation is constant. It has an inner ring extended on both sides, with an eccentric locking collar, enabling quick and easy mounting onto the shaft.

Currently out of stock.

Price with VAT: 274,39 €

Price excluding VAT: 224,91 €

Dimensions

Bore diameter

50 mm

Outside diameter

90 mm

Width, inner ring

49.2 mm

Width, outer ring

22 mm

Width, total

62.7 mm

Performance

Basic dynamic load rating

35.1 kN

Basic static load rating

23.2 kN

Limiting speed

460 r/min

Properties

Sealing

Seal and flinger on both sides

Bore type

Cylindrical

Lubricant

Solid Oil

Relubrication feature

With

Material, bearing

Bearing steel

Logistics

Pack gross weight

0.931 kg

Pack height

96 mm

Pack length

94 mm

Pack width

67 mm

Pack volume

0.605 dm³

Product net weight

0.896 kg

UNSPSC name

Insert bearing

eClass name

Bearing with spherical outside surface
