Radial spherical plain bearings

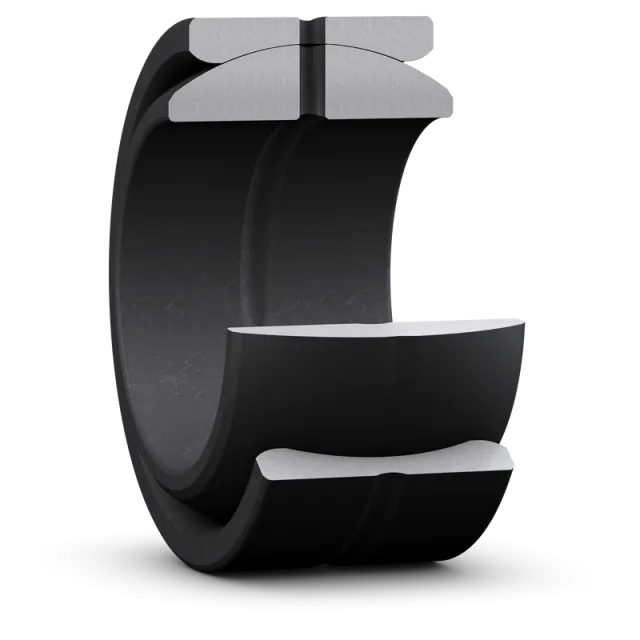

SKF GEZ 014 ES Radial spherical plain bearing, requiring maintenance, inch sizes

Name: SKF GEZ 014 ES - Radial spherical plain bearing, requiring maintenance, inch sizes
Brand: SKF
SKU: 0000000059355
Price: 24.23 EUR
Availability: BackOrder

Title:

GEZ 014 ES

Code:

0000000059355

Radial spherical plain bearings are designed to accommodate radial and combined radial and axial loads, and also misalignment. This specific design includes a steel/steel sliding contact surface combination. The bearings require maintenance and can be relubricated via lubrication holes and an annular groove in both rings.

Currently out of stock.

Price with VAT: 24,23 €

Price excluding VAT: 19,86 €

Dimensions

Bore diameter

22.225 mm

Outside diameter

36.513 mm

Width, inner ring

19.431 mm

Width, outer ring

16.662 mm

Performance

Basic dynamic load rating

42.5 kN

Basic static load rating

127 kN

Properties

Sealing

Without

Radial internal clearance

CN

Relubrication feature

With

Sliding contact surface combination

Steel/steel, standard

Material, inner ring

Bearing steel

Material, outer ring

Bearing steel

Maintenance

Relubrication required

Logistics

Pack gross weight

88.8 g

Pack height

47 mm

Pack length

45 mm

Pack width

29 mm

Pack volume

61.335 cm³

Product net weight

0.085 kg

UNSPSC name

Plain bearings

eClass name

Spherical plain bearing
