Rod ends

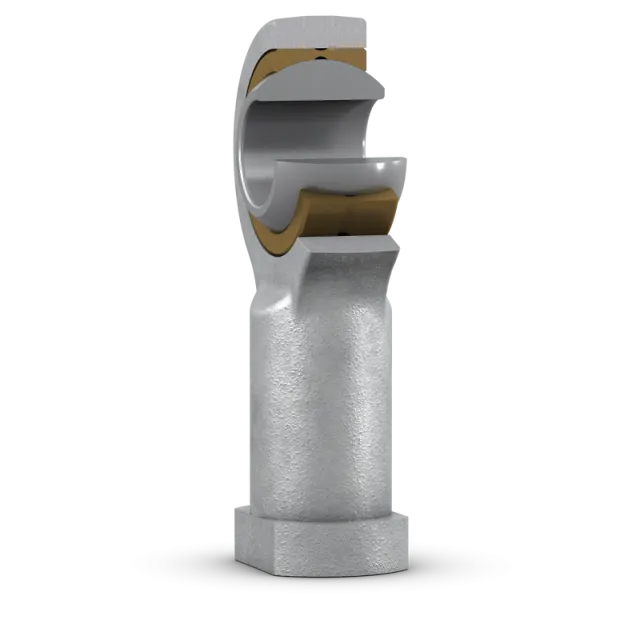

SKF SILKAC 22 M Rod end, requires maintenance, female thread

Name: SKF SILKAC 22 M - Rod end, requires maintenance, female thread
Brand: SKF
SKU: 0000000127913
Price: 104.72 EUR
Availability: BackOrder

Title:

SILKAC 22 M

Code:

0000000127913

These SKF rod ends contain a spherical plain bearing with a steel/bronze sliding contact surface combination. The bearing requires maintenance, sizes 6 and larger can be relubricated via a grease fitting in the housing and via the shank. The female thread is available with a left- (prefix SIL) or right-hand thread.

Currently out of stock.

Price with VAT: 104,72 €

Price excluding VAT: 85,83 €

Dimensions

Bore diameter, bearing inner ring

22 mm

Centre height, housing (from end of shank)

84 mm

Housing length, total

112 mm

Outside diameter, housing eye

55 mm

Width, bearing inner ring

28 mm

Width, housing eye

21 mm

Performance

Basic dynamic load rating

38 kN

Basic static load rating

45 kN

Properties

Sealing

Without

Attachment feature, rod end shank

Left-hand female thread

Sliding contact surface combination

Steel/bronze

Material, inner ring

Bearing steel

Maintenance

Relubrication required

Material, housing

Steel

Thread designation

M 22x1.5

Logistics

Pack gross weight

0.546 kg

Pack height

106 mm

Pack length

104 mm

Pack width

34 mm

Pack volume

374.816 cm³

Product net weight

0.52 kg

UNSPSC name

Rod end bearings

eClass name

Rod end (spherical plain bearing)
