SKF FYNT 55 L
Roller bearing units

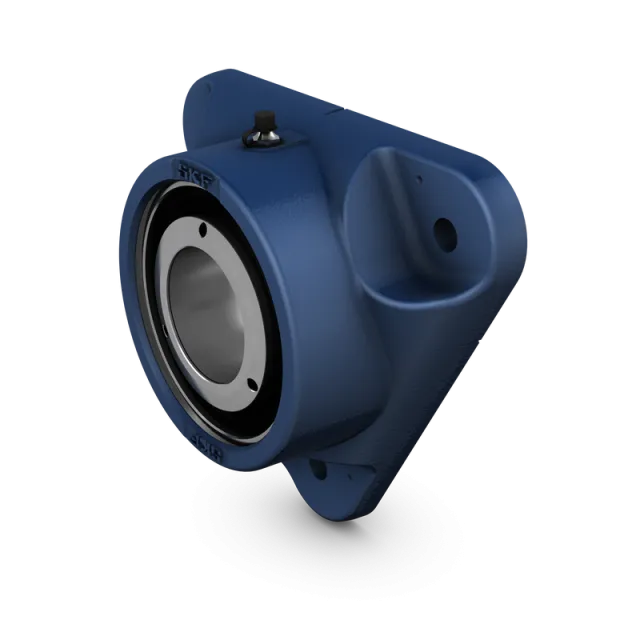

SKF FYNT 55 L Triangular flanged roller bearing unit with SKF ConCentra locking, metric series

Title:
FYNT 55 L
Code:
0000000121604
Triangular flanged roller bearing units consist of a spherical roller bearing mounted in a cast iron housing that can be bolted to a machine wall. They are robust, ready-to-mount units that are assembled, lubricated and sealed at the factory for maximum service life. The simple installation, easy alignment and reliable locking technology of SKF ConCentra units contribute to a smooth operation.
Currently out of stock.
Price with VAT: 446,70 €
Price excluding VAT: 366,14 €

Dimensions

Shaft diameter
55 mm
Bearing width, total
66 mm
Housing overall width
70 mm

Performance

Basic dynamic load rating
125 kN
Basic static load rating
137 kN
Limiting speed
3100 r/min

Properties

Bore type
Cylindrical
Lubricant
Grease
Material, bearing
Bearing steel
Material, housing
Cast iron
Bearing housing seal type
Radial lip seal
Bearing insert
Spherical roller bearing
Housing type
Flanged
Number of bolt holes for fasteners
3
Sealing, unit
Optional end cover
Bearing position
Non-locating

Logistics

Pack gross weight
5.59 kg
Pack height
96 mm
Pack length
242 mm
Pack width
202 mm
Pack volume
4.693 dm³
Product net weight
5.39 kg
UNSPSC name
Combination bearing
eClass name
Mounted bearing unit (unclassified)
