Super-precision angular contact ball bearings

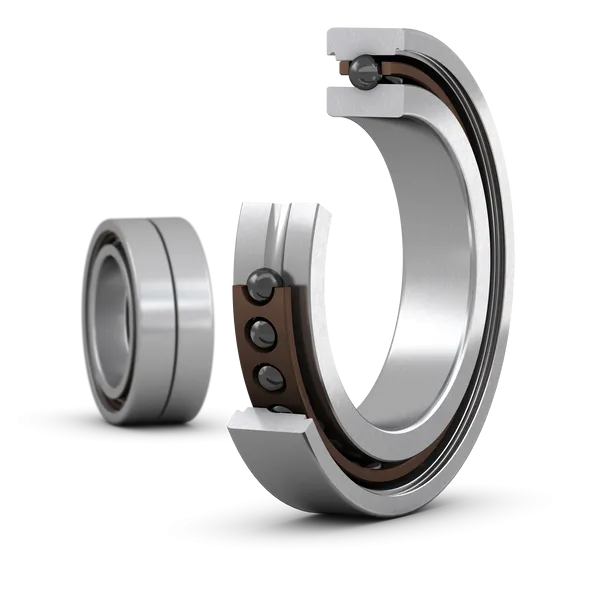

SKF 71920 ACB/HCP4ADGA Matched set of two super-precision, high-speed, B design, single row angular contact ball bearings with seals

Name: SKF 71920 ACB/HCP4ADGA - Matched set of two super-precision, high-speed, B design, single row angular contact ball bearings
Brand: SKF
SKU: 0000000124396
Price: 1900.73 EUR
Availability: BackOrder

Title:

71920 ACB/HCP4ADGA

Code:

0000000124396

These matched sets of two super-precision, high-speed B design, single row angular contact ball bearings are available in a variety of arrangements. Compared to the equivalent SKF E design high-speed bearings, these are suited for lighter loads.

Currently out of stock.

Price with VAT: 1.900,73 €

Price excluding VAT: 1.557,97 €

Dimensions

Bore diameter

100 mm

Outside diameter

140 mm

Width

40 mm

Performance

Basic dynamic load rating

33.2 kN

Basic static load rating

42.5 kN

Contact angle

25 °

Properties

Sealing

Without

Cage

Non-metallic

Lubricant

None

Matched arrangement

Universal matching

Number of bearings in matched set

2

Material, bearing

Hybrid

Design

High-speed B

Tolerance class

P4AU

Universal matching bearing

Yes, back-to-back (<>), face-to-face (><) or tandem (>>)

Logistics

Pack gross weight

1.47 kg

Pack height

152 mm

Pack length

144 mm

Pack width

66 mm

Pack volume

1.445 dm³

Product net weight

1.33 kg

UNSPSC name

Angular contact bearing

eClass name

Angular contact ball bearing

Back More information
