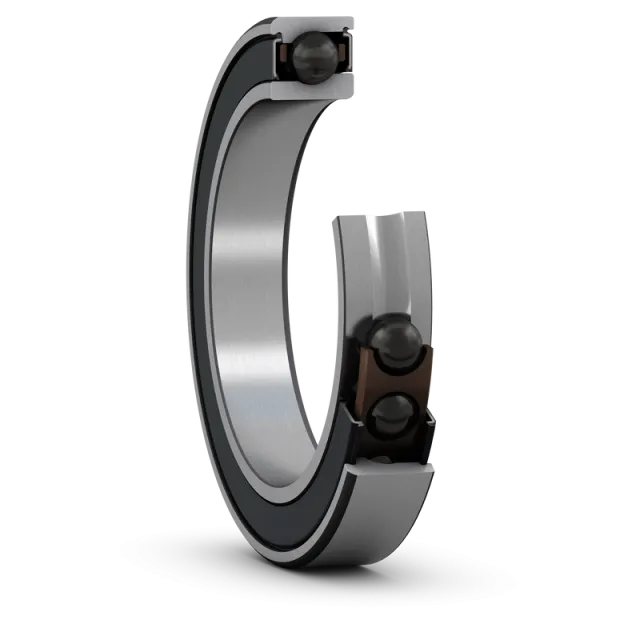

SKF S71905 CEGA/HCP4ASuper-precision, high speed, E design, universally matchable single row angular contact ball bearing with seals
Title:
S71905 CEGA/HCP4A
Code:
0000000122596
These super-precision, high-speed, E design, single row angular contact ball bearings, with non-contact seals, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed for high-speed operation and, compared to SKF B design high-speed bearings, have a slightly higher speed capability and can accommodate heavier loads. Being universally matchable, they can be used together in arrangements to provide effective load sharing, without the use of shims or similar devices.
Currently out of stock.
Price with VAT: 317,41 €
Price excluding VAT: 260,17 €
Dimensions
Bore diameter
25 mm
Outside diameter
42 mm
Width
9 mm
Performance
Basic dynamic load rating
5.27 kN
Basic static load rating
2.8 kN
Contact angle
15 °
Properties
Sealing
Seal on both sides
Cage
Non-metallic
Lubricant
Grease
Matched arrangement
No
Material, bearing
Hybrid
Design
High-speed E
Tolerance class
P4A
Universal matching bearing
Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
