Super-precision angular contact ball bearings

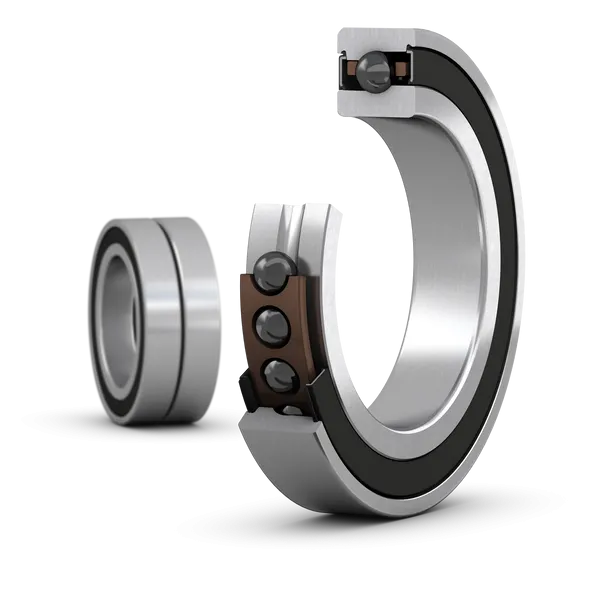

SKF SV7005 CE/P4ADGA Matched set of two super-precision, high-speed, E design, single row angular contact ball bearings with seals

Name: SKF SV7005 CE/P4ADGA - Matched set of two super-precision, high-speed, E design, single row angular contact ball bearings with seals
Brand: SKF
SKU: 0000000125788
Price: 1072.10 EUR
Availability: BackOrder

Title:

SV7005 CE/P4ADGA

Code:

0000000125788

These matched sets of two super-precision, high-speed, E design, single row angular contact ball bearings with seals are available in a variety of arrangements. Compared to the equivalent SKF B design high-speed bearings, these have a slightly higher speed capability and can accommodate heavier loads.

Currently out of stock.

Price with VAT: 1.072,10 €

Price excluding VAT: 878,77 €

Dimensions

Bore diameter

25 mm

Outside diameter

47 mm

Width

24 mm

Performance

Basic dynamic load rating

13.5 kN

Basic static load rating

8.3 kN

Contact angle

15 °

Properties

Sealing

Seal on both sides

Cage

Non-metallic

Lubricant

Grease

Matched arrangement

Universal matching

Number of bearings in matched set

2

Material, bearing

Hybrid with NitroMax steel

Design

High-speed E

Tolerance class

P4AU

Universal matching bearing

Yes, back-to-back (<>), face-to-face (><) or tandem (>>)

Logistics

Pack gross weight

0.154 kg

Pack height

67 mm

Pack length

65 mm

Pack width

44 mm

Pack volume

191.62 cm³

Product net weight

0.139 kg

UNSPSC name

Angular contact bearing

eClass name

Angular contact ball bearing
