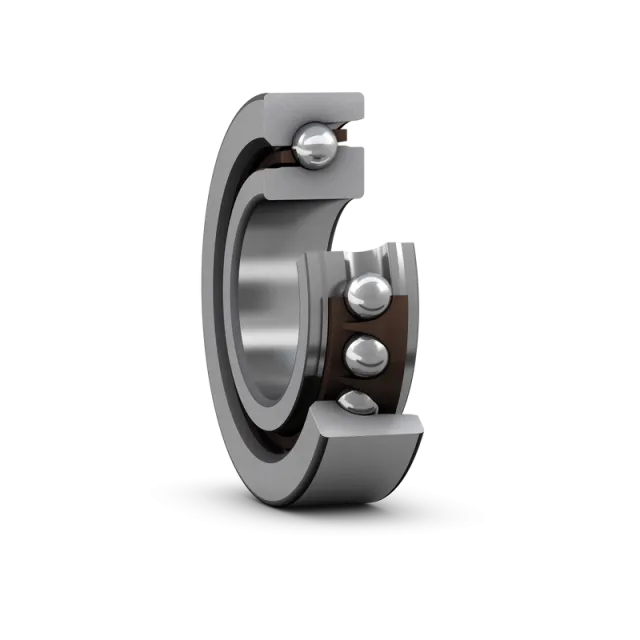

SKF BSA 207 CGB
Super-precision angular contact thrust ball bearings

SKF BSA 207 CGB Super-precision single direction angular contact thrust ball bearing

Title:
BSA 207 CGB
Code:
0000000120470
These super-precision ball bearings offer very high running accuracy and are well suited for screw drive applications. They are also beneficial in other applications, where safe radial and axial support is required, together with extremely precise axial guidance of the shaft. They provide a high degree of axial stiffness and can accommodate heavy axial loads in one direction, high speeds and rapid accelerations.
Currently out of stock.
Price with VAT: 267,74 €
Price excluding VAT: 219,46 €

Dimensions

Bore diameter
35 mm
Outside diameter
72 mm
Height
17 mm

Performance

Basic dynamic load rating
36.5 kN
Basic static load rating
98 kN
Contact angle
62 °

Properties

Sealing
Without
Cage
Non-metallic
Locating feature, bearing outer ring
None
Relubrication feature
Without
Axial load capability
Single-direction
Material, bearing
Bearing steel
Tolerance class
Special

Logistics

Pack gross weight
332.2 g
Pack height
78 mm
Pack length
76 mm
Pack width
23 mm
Pack volume
136.344 cm³
Product net weight
323.2 g
UNSPSC name
Thrust bearings
eClass name
Angular contact ball bearing

Inquiry

For more information, please call us at 02 787 10 10, or send us a message.
We will respond as soon as possible.
