SKF NATR 6 PP
Support rollers (Yoke-type track rollers)

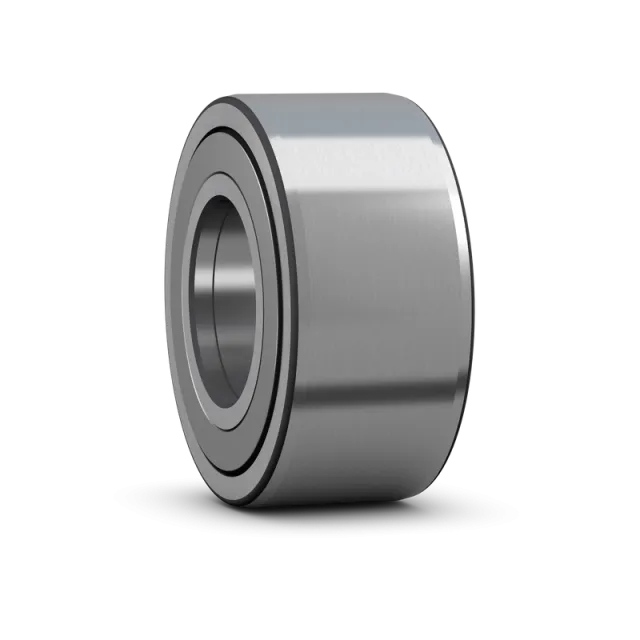

SKF NATR 6 PP Support rollers (yoke-type track rollers) with flange rings, integral sealing and relubrication feature

Title:
NATR 6 PP
Code:
0000000120145
Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied sealed and ready-to-mount. A lubrication hole in the inner ring facilitates relubrication.
Currently out of stock.
Price with VAT: 22,27 €
Price excluding VAT: 18,26 €

Dimensions

Bore diameter
6 mm
Width, outer ring
11 mm
Width, total
12 mm
Functional outside diameter
19 mm

Performance

Basic dynamic load rating
3.3 kN
Basic static load rating
3.8 kN
Limiting speed
5600 r/min

Properties

Sealing
Seal on both sides
Cage
With
Lubricant
Grease
Radial internal clearance
Between C2 and CN
Relubrication feature
With
Bearing part
Complete track roller
Material, bearing
Bearing steel
Tolerance class
Other
Application
Support roller

Logistics

Pack gross weight
23.5 g
Pack height
49 mm
Pack length
49 mm
Pack width
15 mm
Pack volume
36.015 cm³
Product net weight
20.5 g
UNSPSC name
Needle bearings
eClass name
Needle roller bearing
