SKF RNA 22/6.2RS
Support rollers (Yoke-type track rollers)

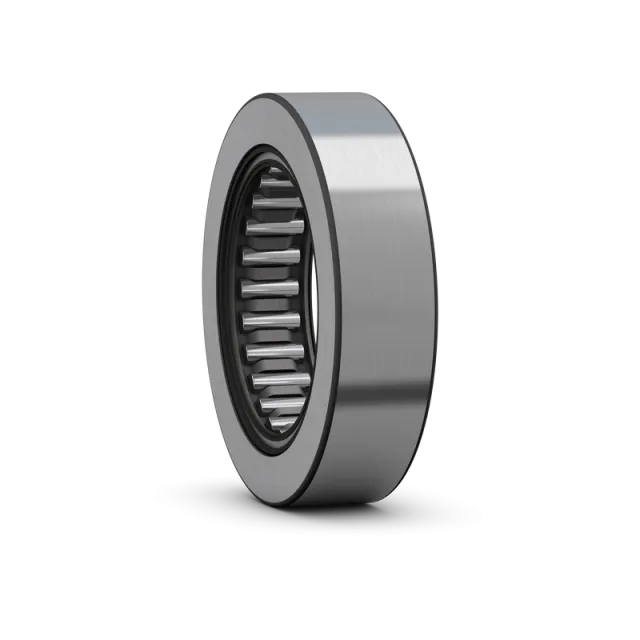

SKF RNA 22/6.2RS Support roller (yoke-type track roller), without flange rings and inner ring, with integral sealing

Title:
RNA 22/6.2RS
Code:
0000000066343
Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a single row needle roller bearing without an inner ring, intended for applications where hardened and ground raceways can be provided on the pin or shaft. They have a thick-walled outer ring with a crowned running surface and are supplied sealed and ready-to-mount.
Currently out of stock.
Price with VAT: 17,26 €
Price excluding VAT: 14,15 €

Dimensions

Bore diameter
10 mm
Width, outer ring
11.8 mm
Width, total
11.8 mm
Functional outside diameter
19 mm

Performance

Basic dynamic load rating
4.02 kN
Basic static load rating
3.65 kN
Limiting speed
7000 r/min

Properties

Sealing
Seal on both sides
Cage
With
Lubricant
Grease
Radial internal clearance
Not applicable
Relubrication feature
Without
Bearing part
Track roller without inner ring
Material, bearing
Bearing steel
Tolerance class
Other
Application
Support roller

Logistics

Pack gross weight
17.8 g
Pack height
49 mm
Pack length
49 mm
Pack width
15 mm
Pack volume
36.015 cm³
Product net weight
14.8 g
UNSPSC name
Needle bearings
eClass name
Needle roller bearing

Inquiry

For more information, please call us at 02 787 10 10, or send us a message.
We will respond as soon as possible.
