SKF 32052 X/L4B
Tapered roller bearings

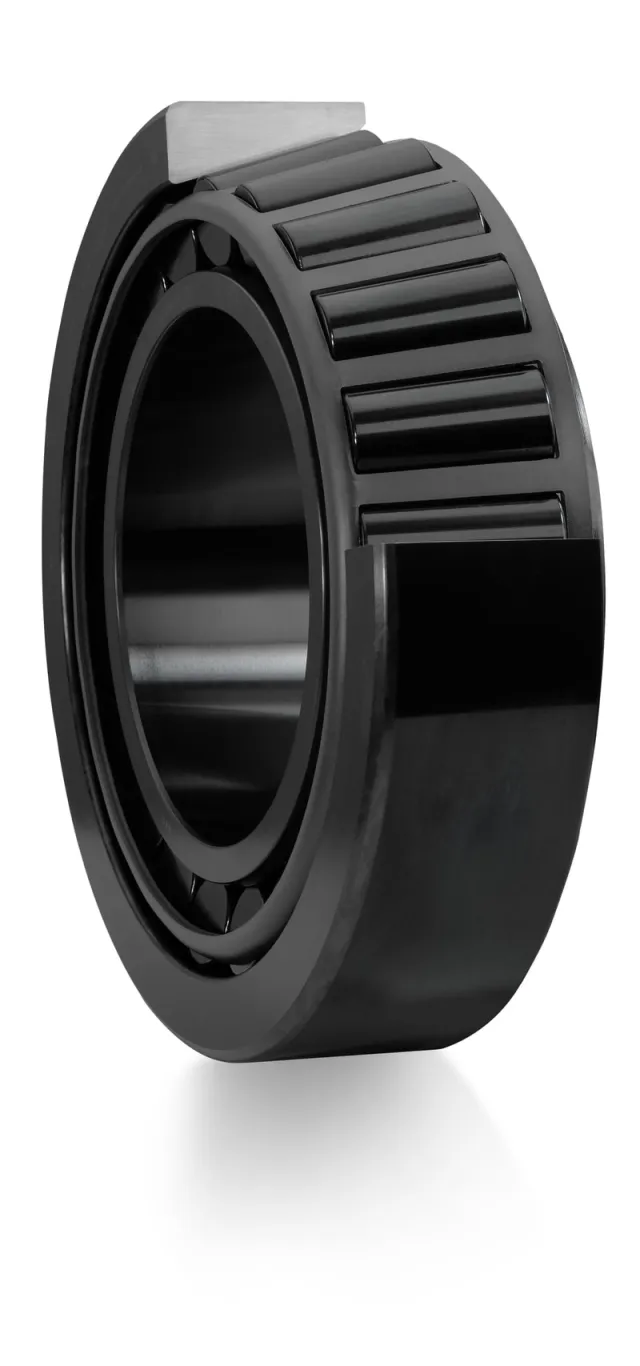

SKF 32052 X/L4B Single row tapered roller bearing

Title:
32052 X/L4B
Code:
0000000126022
Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.
Currently out of stock.
Price with VAT: 3.151,65 €
Price excluding VAT: 2.583,32 €

Dimensions

Bore diameter
260 mm
Outside diameter
400 mm
Width, inner ring
87 mm
Width, outer ring
65 mm
Width, total
87 mm

Performance

Basic dynamic load rating
1241 kN
Basic static load rating
2200 kN
Limiting speed
1400 r/min
Reference speed
1100 r/min
Contact angle
16.166666666707 °

Properties

Sealing
Without
Bore type
Cylindrical
Cage
Sheet metal
Locating feature, bearing outer ring
None
Lubricant
None
Relubrication feature
Without
Bearing part
Complete bearing
Matched arrangement
No

Logistics

Pack gross weight
42.97 kg
Pack height
175 mm
Pack length
444 mm
Pack width
444 mm
Pack volume
34.499 dm³
Product net weight
38.169 kg
UNSPSC name
Tapered bearings
eClass name
Tapered roller bearing
